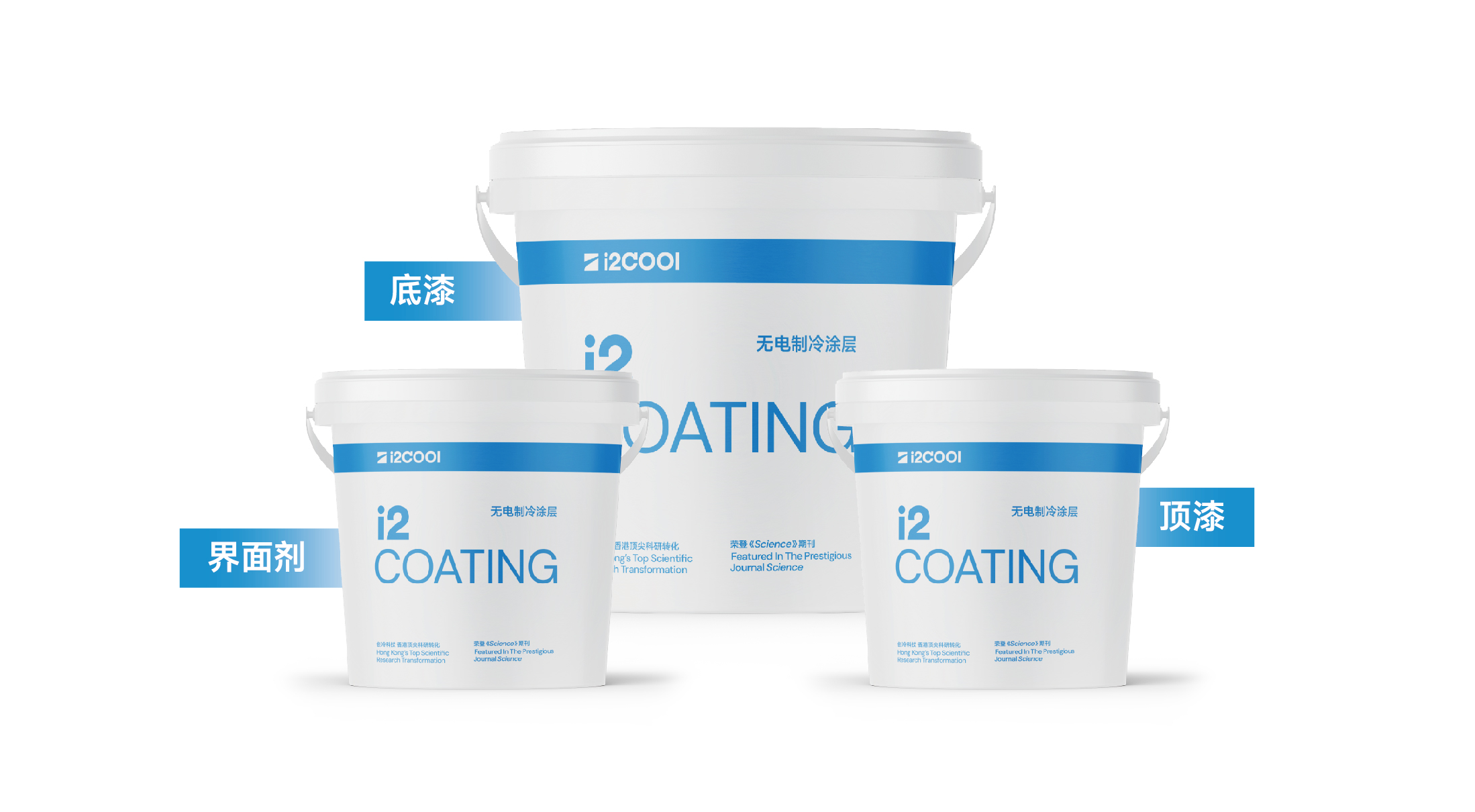

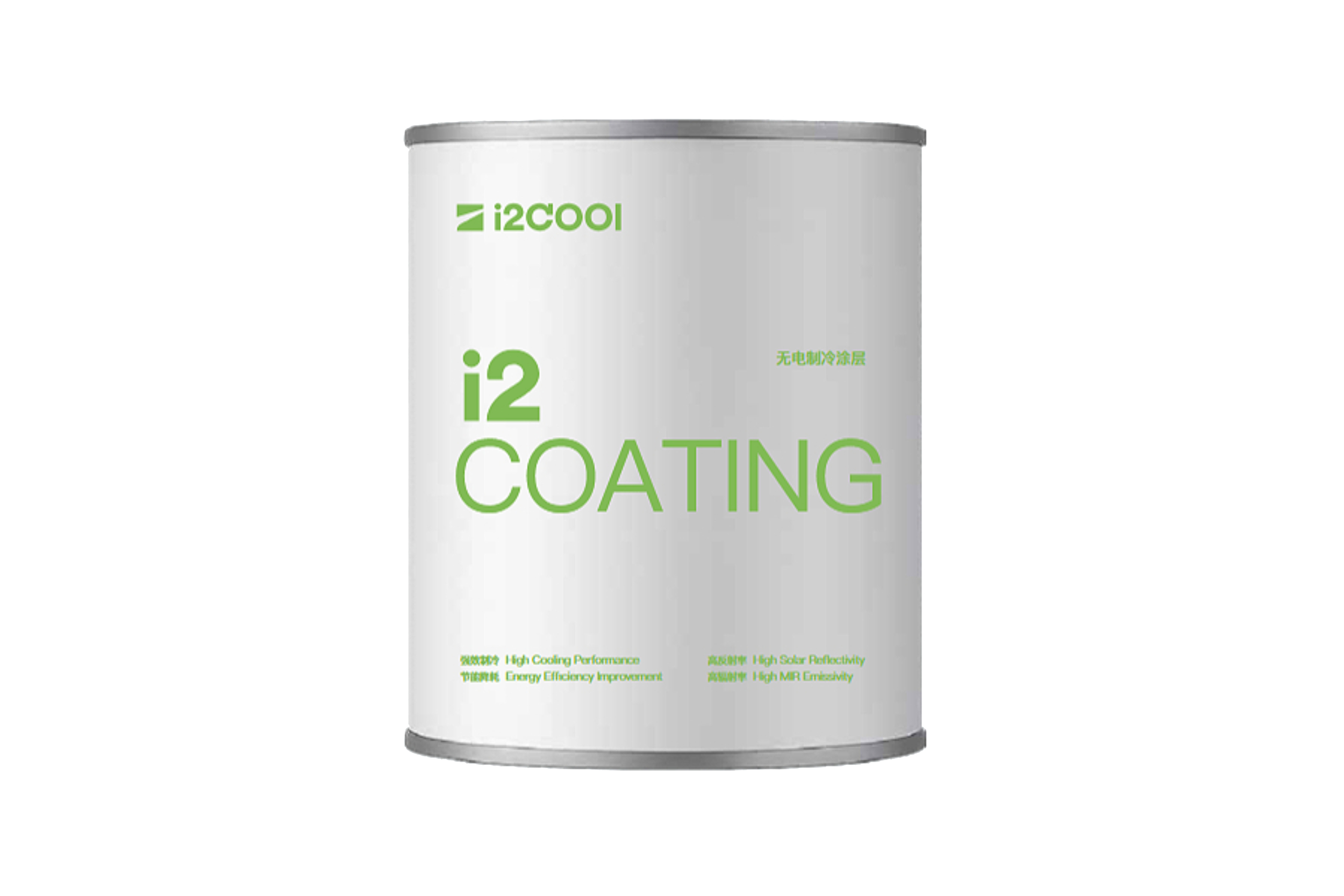

Terracool SkyShield (Coatting)

The core components are composed of high molecular weight polymers and inorganic particles, which have ideal electromagnetic properties and can achieve excellent optical performance and heat transfer effect. They break through the bottleneck of traditional insulation coatings that are difficult to achieve over 90%, achieving up to 95% solar reflectance and up to 95% infrared radiation.

Contact Us →

95%	95%	42.9℃	1-3year
The reflectivity of sunlight is as high as 95%	Mid infrared radiation rate up to 95%	Cooling up to 42.9 ℃	The optimal investment payback period is 1-3 years

Product Features


Super cooling effect Maximum cooling of 42.9 ℃ saves 42% of air conditioning energy consumption	Safe and reliable Ultra low VOC water-based coating Class A fire rating	Comprehensive performance Meet the requirements of waterproofing, oil resistance, dust prevention, and high hydrophobicity

Easy construction Spray/brush/roller coating is suitable for various complex surface structures	Weather-resistant Salt spray resistant and corrosion-resistant cooling effect for up to 10 years	Pantone Customization Customized color solutions

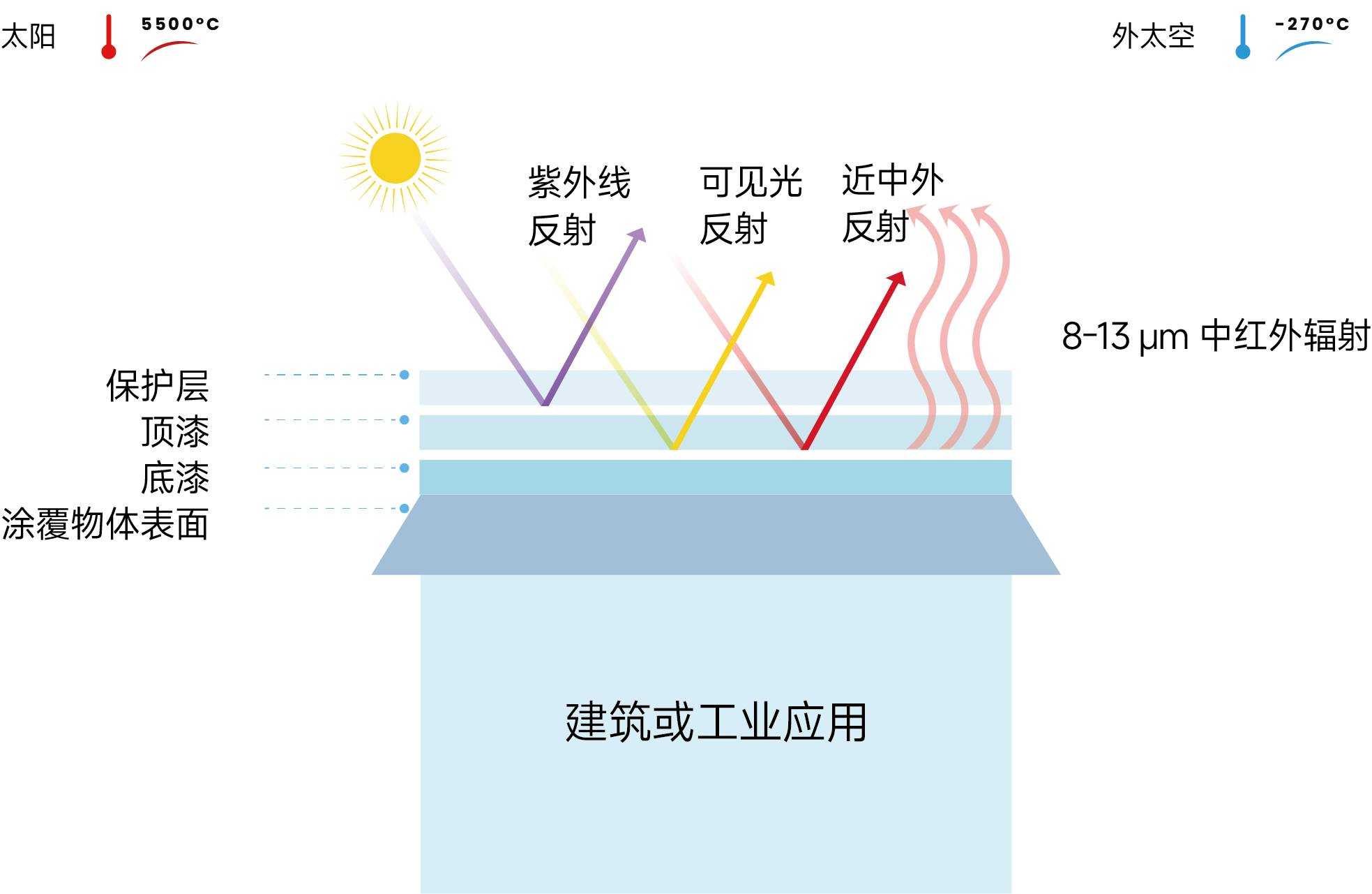

Product Technical Principles

Inspired by the unique hair structure of the Saraha silver ant, Chuangleng Technology has independently developed multi-component and multi-scale nano particle materials through deep integration of material science, optics, and heat transfer principles, achieving efficient solar reflection and mid infrared radiation through atmospheric windows. The solar reflectivity and mid infrared radiation rate are both as high as 95%, effectively suppressing heat absorption and promoting heat release, achieving zero energy cooling without the need for external power sources and refrigerants. Breaking through the technological bottleneck of traditional thermal insulation coatings that are difficult to achieve a reflectivity of over 90%, leading the industry.

Product Parameters

Project	Testing basis	Result
Solar reflectance（250-2500 nm）	GB/T 2680-2021、ASTM E1980-11（2019）	95.06%
Mid infrared emissivity（8-13 µm）	GB/T 30127-2013	95.20%
Gloss	ISO 2813:2014	83
Solar reflectance index	ASTM E1980-11（2019）	120
Pull off adhesion test	ASTM D4541-17	7 MPa
Impact resistance test	ISO 2813:2014	60kg·cm
Volatile organic compound content	GB/T 23986-2009	12g/L
Fire rating	ASTM E84	ClassA

Pantone Color Customization


Pantone 7506U	Pantone 2253U	Pantone 7541U	Pantone 7443U	Pantone 7457U	White	Pantone Cool Gray 2U	Pantone 698U

Product patents and certifications

We have been certified according to ISO 14001, 45001, and 9001 standards, and have undergone rigorous testing to meet mechanical performance requirements such as waterproofing, oil resistance, dust resistance, flame retardancy, and high hydrophobicity. We also comply with RoHS, REACH, hazardous substance testing, HKCC, and China Green Product standards, ensuring safety and harmlessness. Received Platinum certification for green products from the Hong Kong Construction Industry Council.
